Lineare per saldatura dall’esterna
|
Model SW |
Welding Length mm |
Ferrule Thikness mm |
Min. Ferrule diameter mm |
Max. Ferrule diameter mm |
Carriage Speed Min. - Max. mm/min |
Length mm |
Width mm |
Height mm |
|---|---|---|---|---|---|---|---|---|
| SW 0.5 | 600 | 0,5 - 5,0 | 60 | 800 | 0 - 30000 | 1800 | 800 | 1900 |

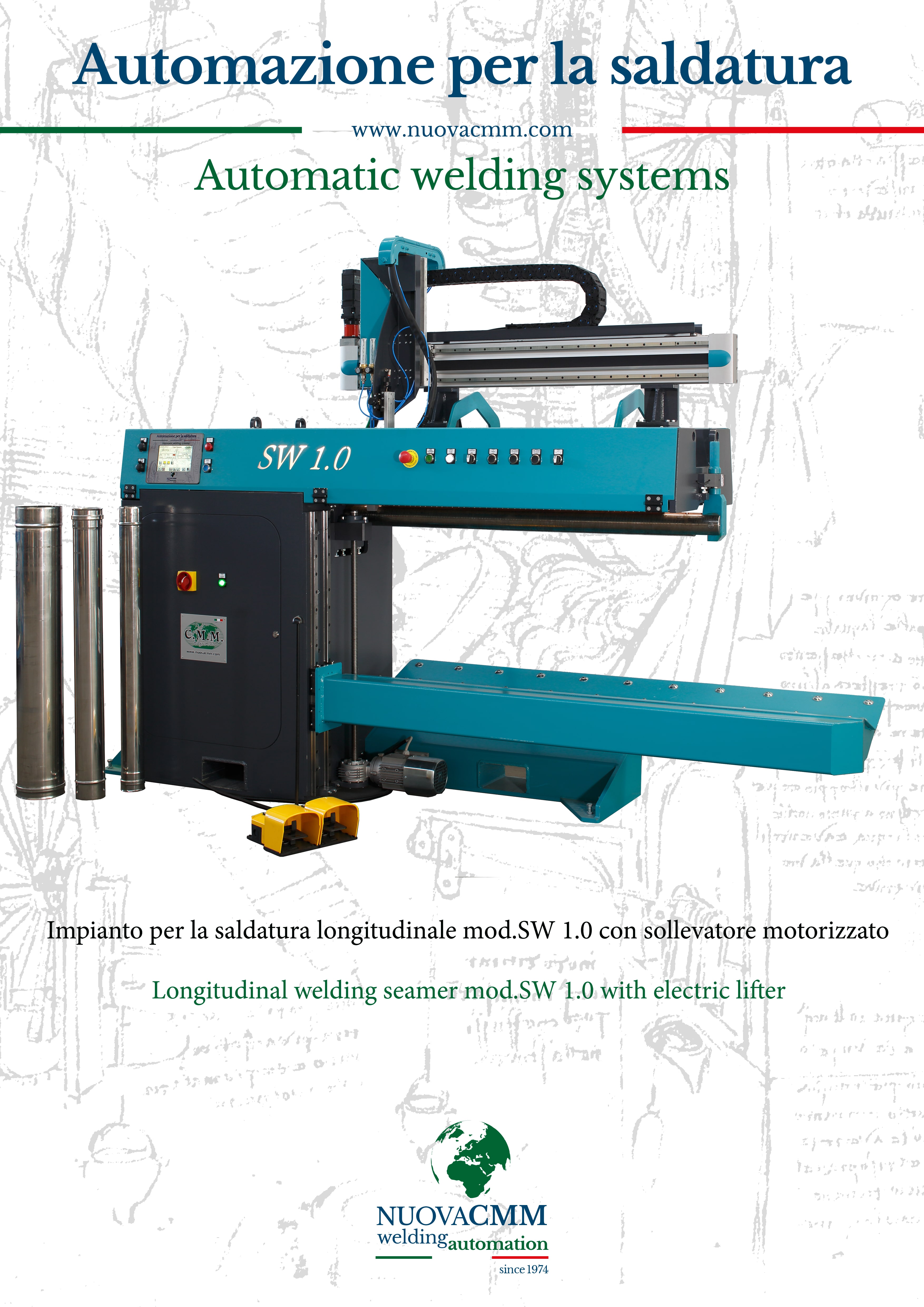

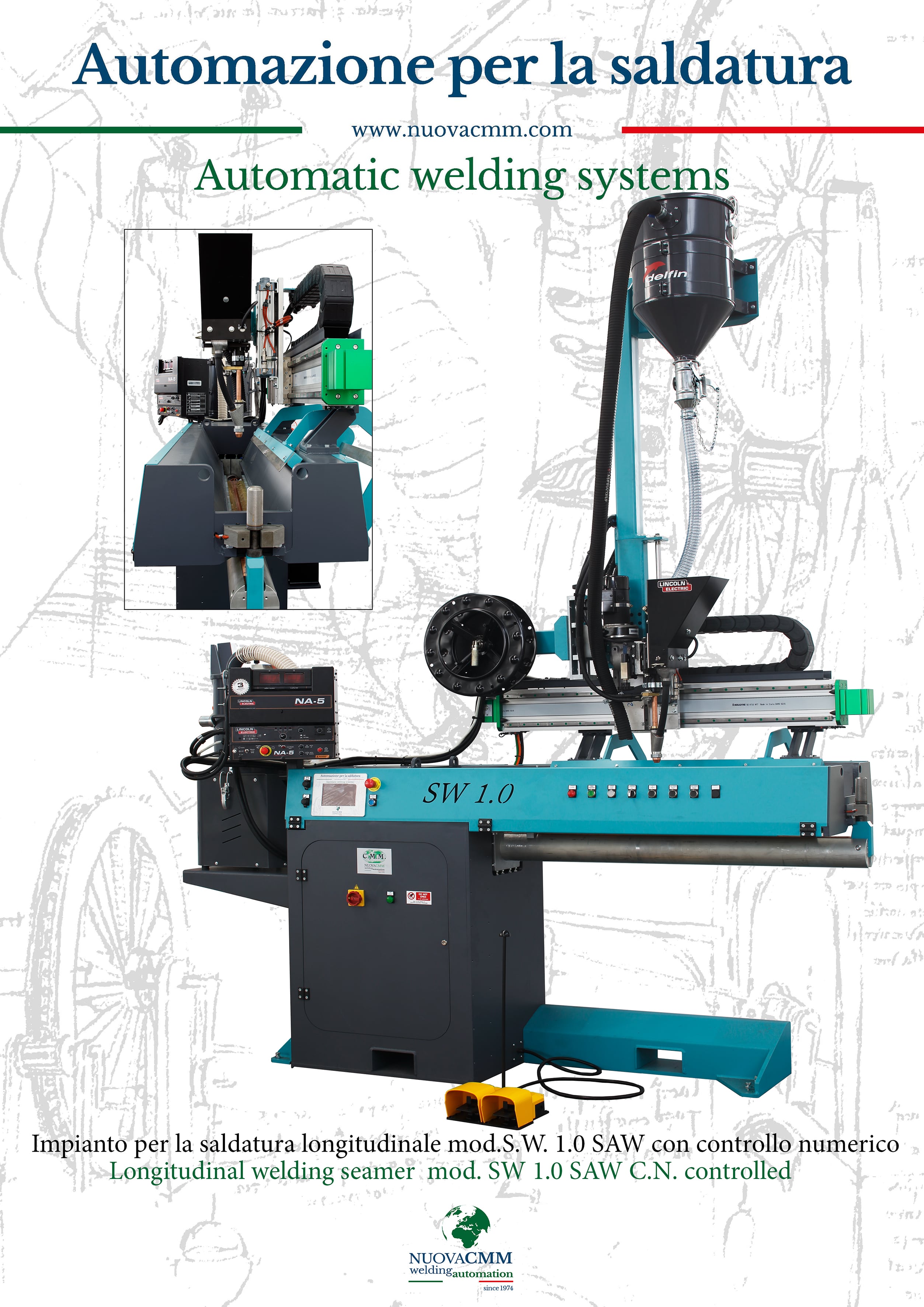

| SW 1.0 | 1100 | 0,5 - 5,0 | 80 | 800 | 0 - 30000 | 2300 | 800 | 1900 |

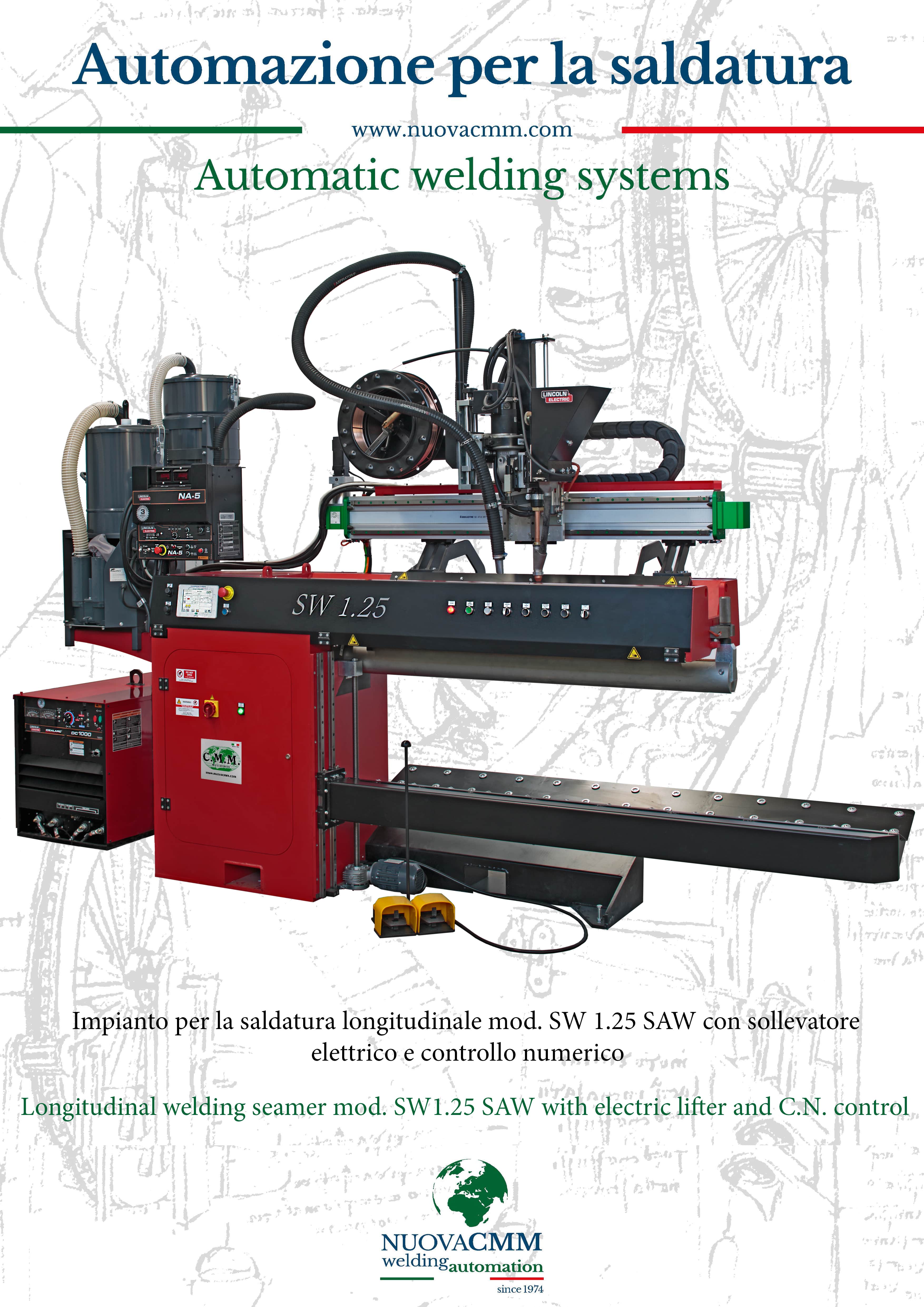

| SW 1.25 | 1350 | 0,5 - 5,0 | 100 | 800 | 0 - 30000 | 2600 | 800 | 1900 |

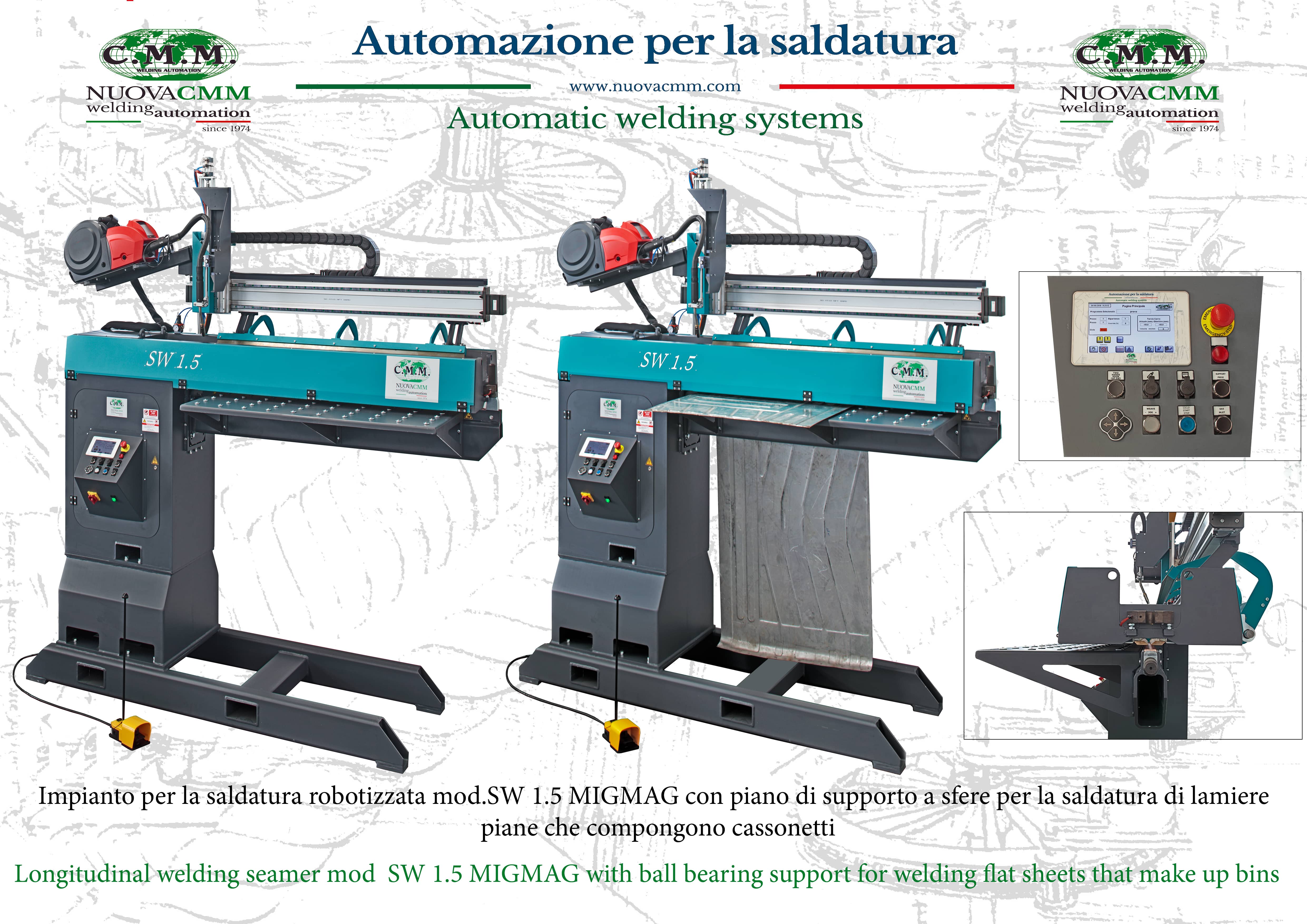

| SW 1.5 | 1600 | 0,5 - 5,0 | 110 | 800 | 0 - 30000 | 2800 | 800 | 1900 |

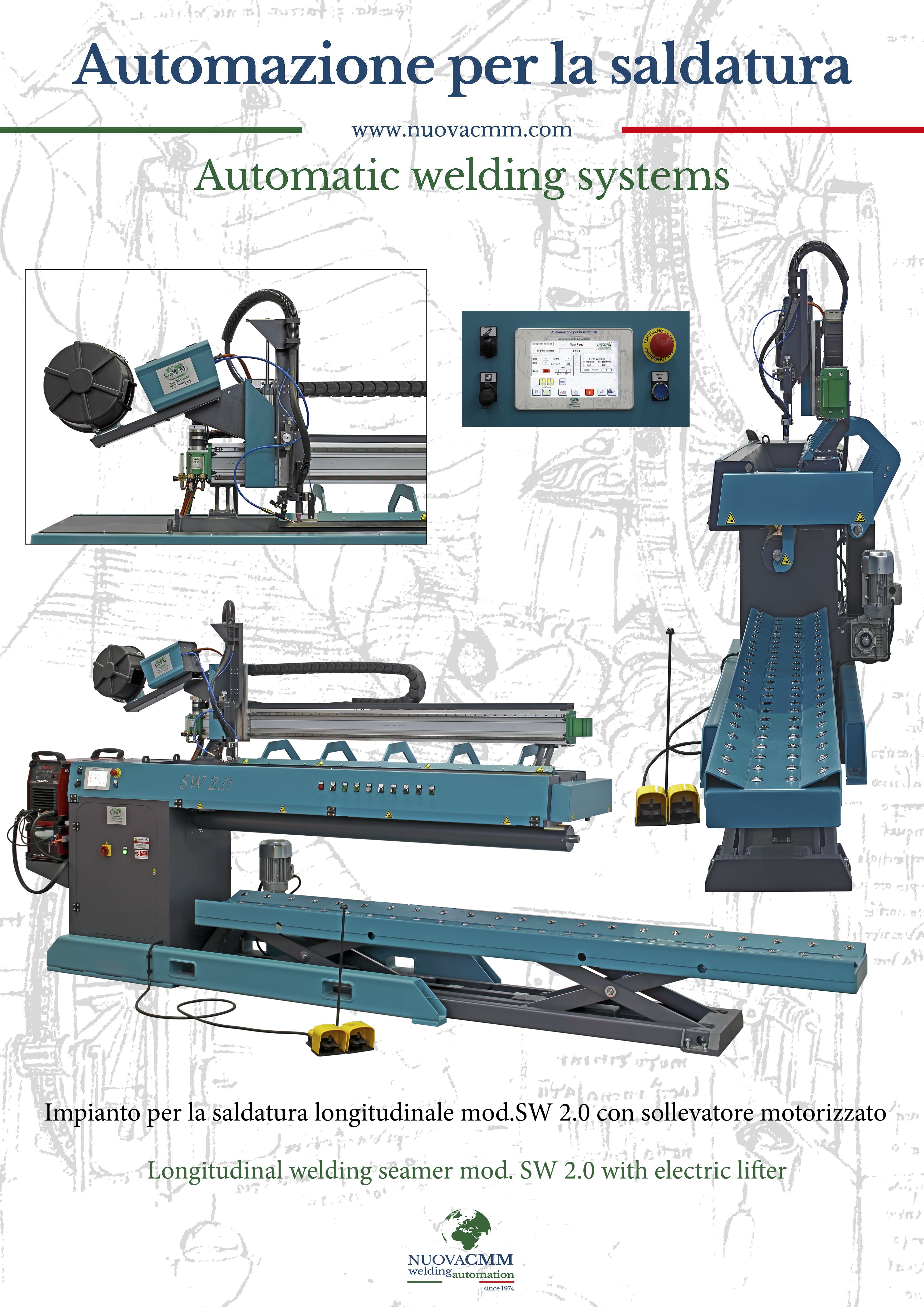

| SW 2.0 | 2100 | 0,5 - 8,0 | 150 | 800 | 0 - 30000 | 3300 | 1000 | 1900 |

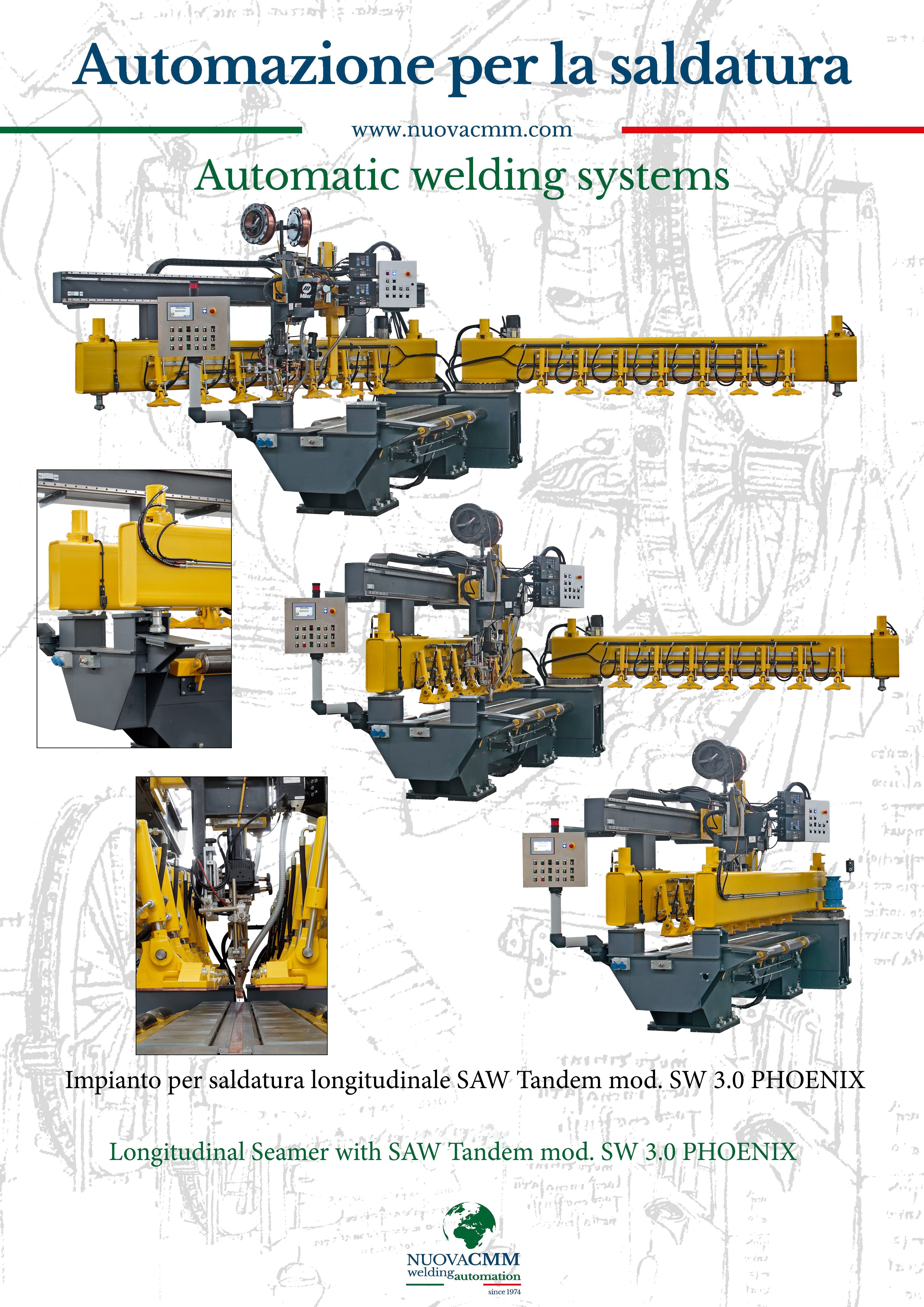

| SW 3.0 | 3100 | 0,5 - 8,0 | 260 | 1000 | 0 - 18000 | 4300 | 1000 | 2100 |
| SW 4.0 | 4100 | 0,5 - 8,0 | 340 | 1000 | 0 - 18000 | 5300 | 1200 | 2100 |
